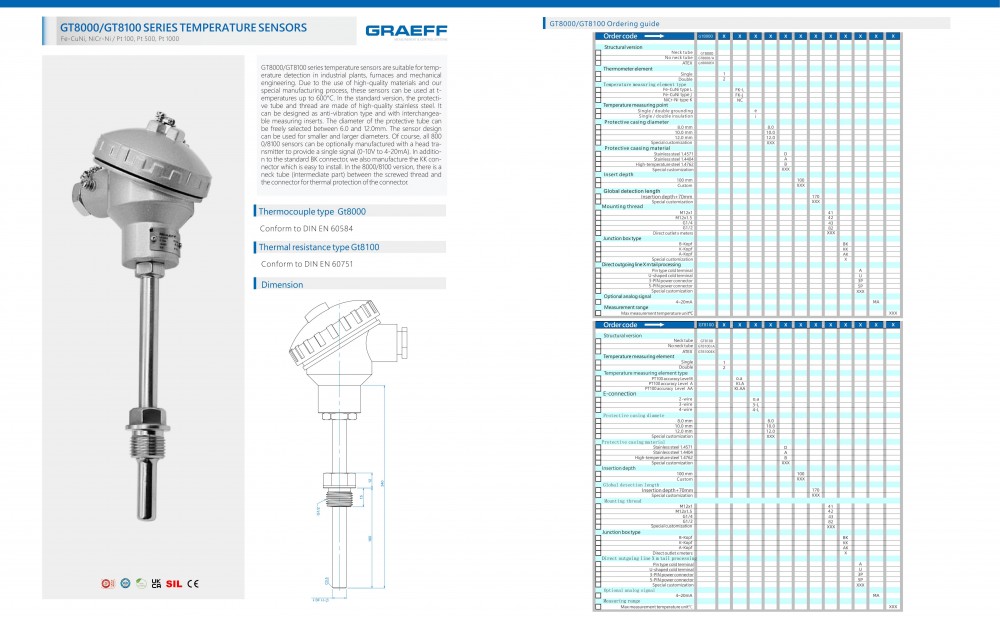

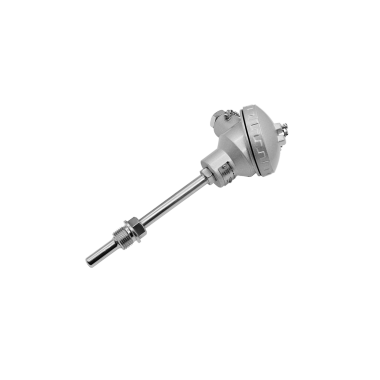

GT8000/GT8100 series temperature sensors are suitable for temperature detection in industrial plants, furnaces and mechanical engineering. Due to the use of high-quality materials and our special manufacturing process, these sensors can be used at temperatures up to 600°C. In the standard version, the protective tube and thread are made of high-quality stainless steel. It can be designed as anti-vibration type and with interchangeable measuring inserts. The diameter of the protective tube can be freely selected between 6.0 and 12.0mm. The sensor design can be used for smaller and larger diameters. Of course, all GT8000/8100 sensors can be optionally manufactured with a head transmitter to provide a single signal (0-10V to 4-20mA). In addition to the standard BKY connector, we also manufacture the K connector which is easy to install. In the 8000/8100 version, there is a neck tube (intermediate part) between the screwed thread and the connector for thermal protection of the connector.
